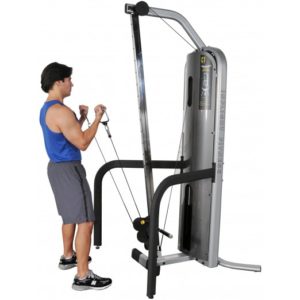

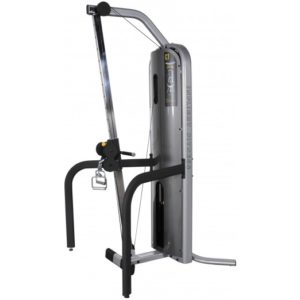

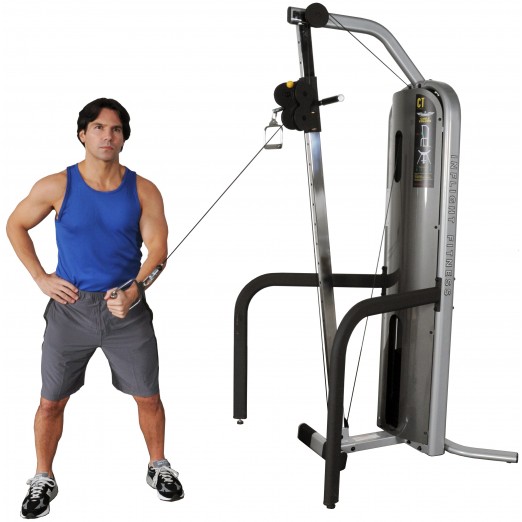

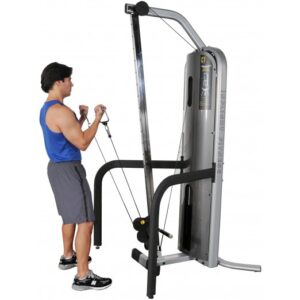

Inflight Adjustable Cable Column CT-CLM

$2,595.00$2,945.00

Standard

  • 150lb. weight stacks with ten 5lb. and ten 10lb. plates.
  • Adjustable to 17 different heights.
  • 2:1 cable ratio.

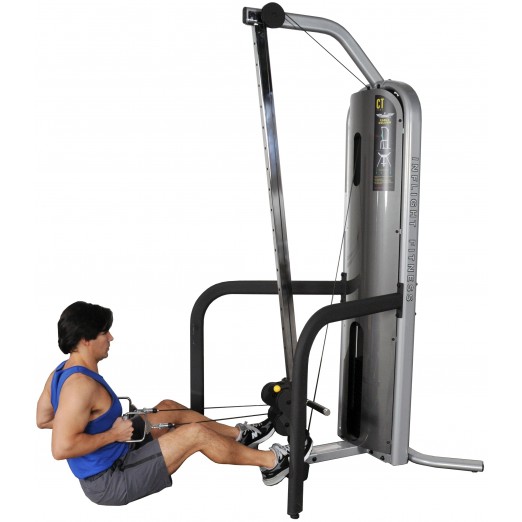

  • Integrated foot block for seated row exercises.
  • Chrome steel stirrup handle.

Optional

  • Steel shrouds powder coated and clear coated for a mar-resistant and lustrous finish.
  • Standard 150lb. tiered weight stack is upgradeable in 50 lb. increments to 300 lbs.
Clear

Description

Don’t let the simple design of the Inflight Adjustable Cable Column CT-CLM fool you, this machine is capable of working every muscle fiber you possess. Sleek, affordable and engineered with perfect this equipment is a compact and streamlined all-purpose machine that is ideal for both the home and commercial gym environments.

Take advantage of this world class workout equipment from Inflight that brings the gym experience to new levels of efficiency, practicality, ergonomics, freeform movement and fat busting exercises! What else do you expect from Inflight, a former aircraft parts manufacturer? This Adjustable Cable Column is built to last for entire generations without blinking an eye.

Inflight Adjustable Cable Features & Specifications

First and foremost, the frame is composed of nothing but heavy-duty 11 & 12 gauge 1500 grade structural tubing. How about them apples? This basically means that you could hook these cables up to a dump truck and they wouldn’t snap. All the technicalities mean nothing to most people except fitness engineers, so suffice it to say that this machine is sturdy and reliable beyond measure.

The padding an upholstery is extremely comfortable, along with stylish! Did someone say black vinyl? We’re talking about specially molded cushions that hold strong. From guide rods and fasteners to the dual handgrips, weight plates and pulleys this is a top of the line product that gains in popularity by the minute.



Additional Benefits & Warranty Information

Imagine being able to go from one freeform cable-assisted exercise to the next non-stop. One minute you’re doing cable squats with a row at the top, to curls that lead into shoulder presses. This Inflight Adjustable Cable Column CT-CLM is a circuit lovers dream. Boost your metabolism and customize infinitely variable full-body workouts with ease, day in and day out.

In the commercial setting these are always huge hits because of how versatile they are, as well as easy to use. Talk about user-friendly. Even a child could figure out ten different ways to exercise with this machine inside of ten minutes.

  • The heavy-duty frame comes with a lifetime warranty! This means you can work out in the home without worrying, or let your gym members lose on it for years on end and feel safe knowing Inflight takes care of their members.
  • The smaller parts are covered for a year, but again, you would be hard-pressed to find a cable and pulley system with more integrity than what Inflight provides. Even the upholstery is covered!



If you’re looking for a total package all-in-one experience, then check out the Inflight Adjustable Cable Column CT-CLM. Through freeform cable-assisted movement and stellar ergonomic engineering your workouts will never be the same.

Inflight Adjustable Cable Column CT-CLM FEATURES:

Frame Materials:
All Inflight Fitness exercise equipment is constructed of heavy-duty 11 and 12ga structural tubing with an ASTM rating of A500 grade (minimum mechanical properties of 58,000 PSI ultimate tensile strength and 46,000 PSI yield strength). All flanges are a minimum of ¼” thick. All steel components are machined to a minimum tolerance of +/- .030″.

Construction:
All MIG (metal inert gas) welding is in accordance with the following codes and/or standards: 3:1 AWS, A3.0 Welding Terms and Definitions 3.2 AWS Dl.1-81 Structural Welding Code-Steel 3.2 AWS D9.1 Specifications. All TIG (tungsten inert gas) welding is in accordance with Mil-Std-2219.

Frame Finish:
Each piece of equipment is prepared for powder coating with a high-temperature, high-pressure iron phosphate wash to ensure optimum adhesion of the electrostatically applied TGIC polyester powder. The coating is then baked at 375 degrees F and carefully monitored to ensure complete curing. This coating is scuff resistant and long wearing. Technical summaries are determined using 3.0 -5.0 mil powder film over iron-phosphated, pretreated steel using and conforming with the following test methods: ASTM B5965-96, C ASTM D 3451-93, 13 ULDTOV2 organic coatings.

Padding and Upholstery:
All of our selectorized weight equipment is fitted with black vinyl covered HR molded cushions. The molded cushions have a density of 100 and a durometer of 40-45. The back cushions incorporate lumbar support and the bottom cushions are contoured to provide comfort and proper positioning. This material is long lasting and easy to clean.

However, if you need a custom color, custom pads are available. We use a padding material of 2″ thick crosslinked polyolefin foam, which has extremely low water absorption, excellent weathering properties, and superior physical properties to neoprene or polyurethane type foams. We cover the pad with your choice of “Naugahyde” or “Boltaflex” vinyl.

All pads are top and blind-stitched. Foam is glued to a 3/4″ thick support board, radiused and chamfered for durability.

Bearings:
All pivots rotate on either ABEC-1 precision ball bearings (Load Rating for 1″=2529 pounds), contained in a cast or machined housing or a self-lubricating Oilite bronze bushing in a machined steel housing to provide smooth, quiet movement and precise alignment.

Cables:
1/4″ diameter, 7 x 19 strand, mil-spec aircraft cable with a black nylon coating. All fittings are stainless steel and swaged to the cable. The cable assembly is rated at a minimum breaking strength of 4200 lbs.

Pulleys:
Pulleys are 4 1/2″ diameter fibreglass-impregnated nylon with a precision fit cable groove and 6203 double sealed roller bearings.

Weight Plates and Dampening:
All Inflight Fitness selectorized equipment feature solid cast steel weight stack plates with a black finish. Self-aligning low friction sleeve bearings surround the guide rods on every weight stack plate. Weight plates are warranted against breakage for the lifetime of the machine. Heavy-duty rubber spacers are used under the weight stack to absorb shock and reduce noise.

Guide Rods:
To ensure quiet operation and low friction movement, all machines are fitted with 1″ diameter floating chrome plated guide rods with rubber cushion plugs on each end.

Lanyard attached pins:
All Inflight Fitness selectorized equipment feature weight stack pins that are attached with a coiled self-storing cord to prevent pin removal or loss.

Fasteners:
All bolts meet ANSI B18.3 specifications. One-time use aircraft-style centre-locking nuts are used to ensure attach points remain secure.

Handgrips:
Our handgrips are manufactured from nonabsorbent UV resistant closed-cell PVC vinyl foam for comfort, safety and durability.

Specifications

  • Frame Materials: All Inflight Fitness exercise equipment is constructed of heavy-duty 12ga structural tubing.
  • Padding and Upholstery: All of our selectorized weight equipment is fitted with black vinyl covered HR molded cushions.
  • Bearings: All pivots rotate on either ABEC-1 precision ball bearings, contained in a cast or machined housing to provide smooth, quiet movement and precise alignment.
  • Cables: All fittings are stainless steel and swaged to the cable. The cable assembly is rated at a minimum breaking strength of 4200 lbs.
  • Pulleys: Pulleys are 4 1/2″ diameter fiberglass-impregnated nylon with a precision fit cable groove and 6203 double sealed roller bearings.
  • Dimensions: 46″(W) x 50″(L) x 91″(H) (118cm x 127cm x 231cm)
  • Weight: 200 lbs.(90kg)
