The SportsArt DS972 Dual Stack Functional Trainer offers a unique adjustable pulley ratio (1:2 and 1:4) giving users more workout options and increases weight selection options.

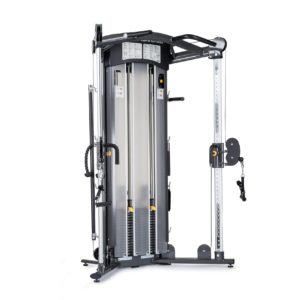

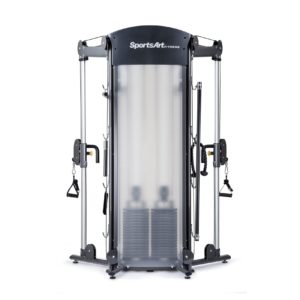

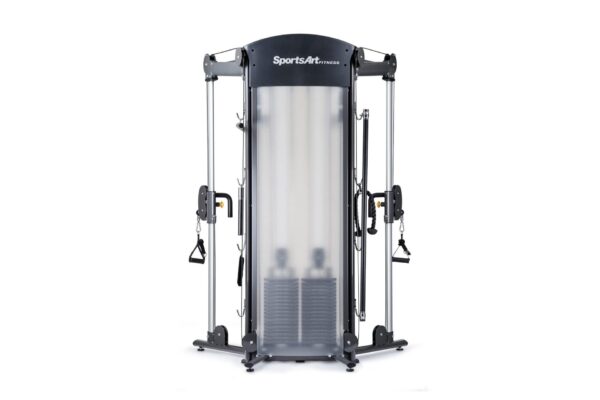

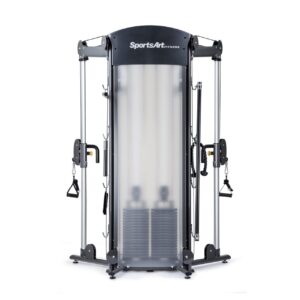

SportsArt DS972 Dual Adjustable Pulley Dual Stack Functional Trainer Gym – The DS972 Functional Trainer from SportsArt Fitness is a dual stack selectorized gym machine with two cable columns offering a unique adjustable pulley ratio to give users more workout options and increase weight selection options. Select 1:2 cable ratio for heavier resistance or 1:4 cable ratio for lighter resistance. You define the motion allowing you to strengthen every part of your body while mimicking everyday activities and sport-specific movements. The DS972 Dual Stack Functional Trainer delivers the ultimate combination of aesthetics, innovation, correct biomechanics and function, along with the smoothness and features you expect from a premium product line.

The contemporary design enhances the look of any facility while the world-class components and quality ensure years of trouble free service. The DS972 is a fully functional, versatile piece of commercial strength equipment that safely and effectively offers a wide variety of total body exercises in one machine.

Purchase the SportsArt Functional Trainer on GSA contract – All SportsArt commercial strength and cardio equipment can be purchased from Ironcompany on GSA Contract GS-07F-0104M and CMAS Contract 4-12-78-0066A.


  • Color: Charcoal Gray
  • Heavy-duty round tubular steel frame
  • Adjustable 1:2 and 1:4 pulley ratios within same machine increases weight stack options
  • Dual weight stacks allow multiple users
  • 1:4 pulley ratio offers lower starting weight and lighter weight increments (maximum resistance 41.25 lbs / 18.75 kg)
  • 1:2 pulley ratio offers heavier starting weight and heavier weight increments (maximum resistance 82.5 lbs / 37.5 kg)
  • One-handed adjustable high/low pulley system
  • Cable travel distance of 118″ for 1:4 resistance setting or 99″ for 1:2 resistance setting
  • Pulley position adjustment: 41 adjustments with 1.6″ spacing
  • Deep-groove, 5-inch shrouded pulleys provide faultless cable tracking
  • Steel weight stacks with noise dampening
  • Stainless steel guide rods resist rust and stay smooth
  • Internally-lubricated 1,500 lb. steel aircraft cables provide quiet, smooth operation
  • Cable columns have quad nickel chrome plating finish
  • Integrated pull up bar for body weight training
  • Magnetized weight selector fork with retracting cord
  • Front and back shroud covers for safety
  • Illustrated exercises for quick reference
  • 8 hooks for accessory storage

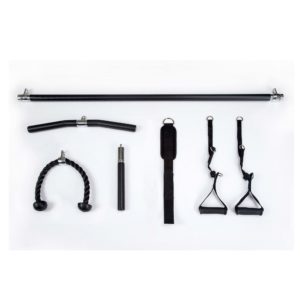

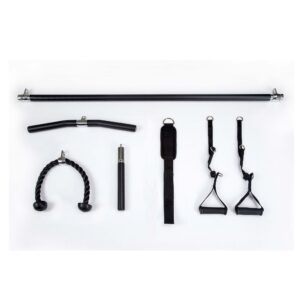

7-Piece Accessory Set Included:

  • (2) Multi-D Ring Handles
  • (1) Dual-Attachment Straight Bar
  • (1) Curved Bar
  • (1) Sports Handle
  • (1) Triceps Rope
  • (1) Ankle Strap


  • Assembled Dimensions: 60.2″ W x 39.4″ D x 89.2″ H
  • Assembled Weight: 682 lbs.
  • Stack Weight (per stack): 165 lbs. (75 kg)
  • Shipping Dimensions (on pallet): 91″ L x 39″ W x 37″ H (Freight Shipping Class 92.5)
  • Shipping Weight (on pallet): 849 lbs.

Click here to view DS972 Functional Trainer specifications brochure

Full Commercial Warranty (no usage limit):

  • Frame – 10 Years
  • Weight Plates and Guide Rods – 5 Years
  • Cables, Belts, and other parts – 3 Years
  • Grips and Covers – 1 Year
  • Labor – 1 Year

NOTE: Not available in all markets.  Not available to medical destinations.  Please call or email before placing order.
