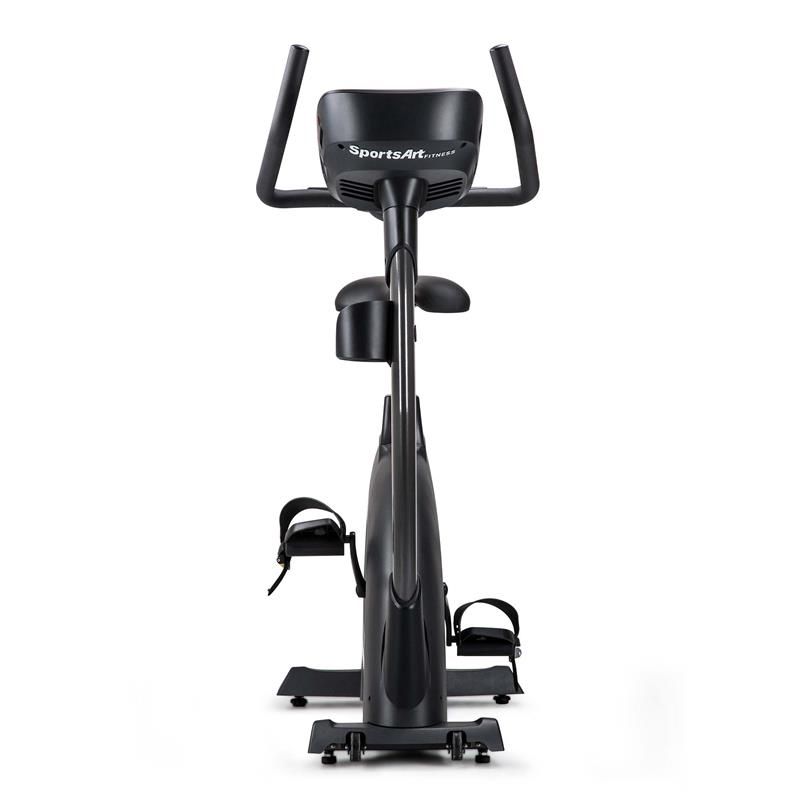

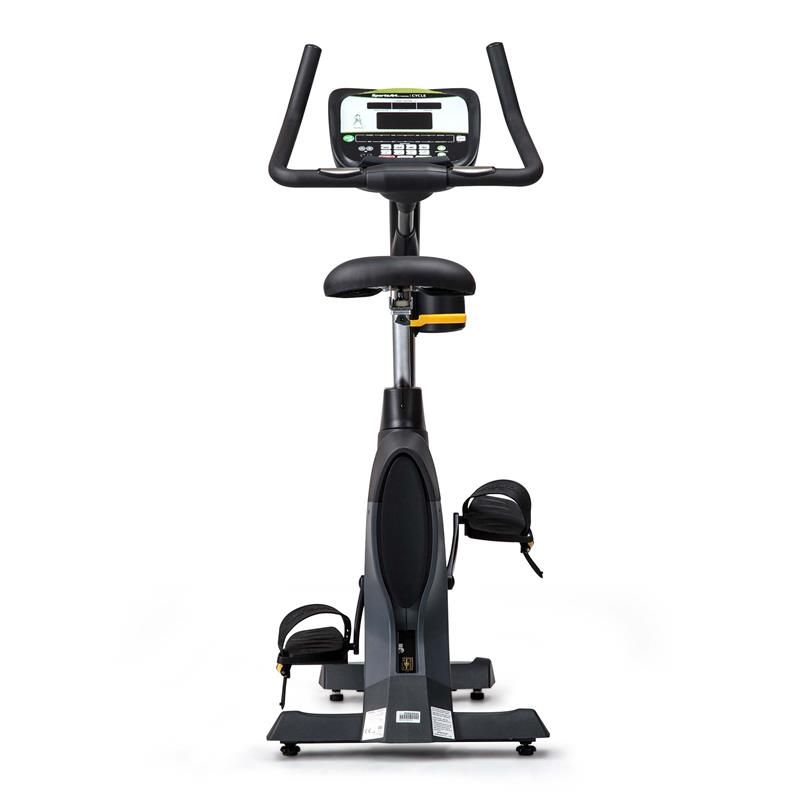

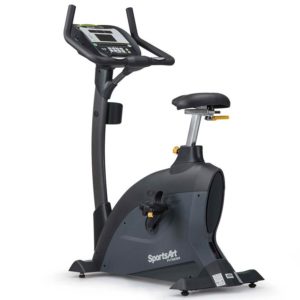

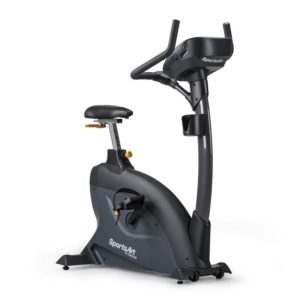

SportsArt Light Commercial Upright Stationary Bike | C545U Performance Series – The Self-Generated C545U upright cardio bike by SportsArt is designed and built for light commercial use including residences, training studios, corporate wellness centers and multi-unit housing complexes. Coming in with a total user weight capacity of 450 lbs., the E545U is the most robust light commercial upright bike in the SportsArt line-up. A four way seat adjustment ensures that users of all sizes can customize the ride to their own specific needs for best comfort. A specially designed low-profile shroud makes for easy entry and exit from either side. Specially designed pedals are oversized for allowing more real-estate under the feet and connecting adjustment straps are quick and easy to use keeping feet secured at all times while riding. Being self-generating, placement of the C545U is always optimal and not dictated by the location of a power outlet. And the electro-magnetic resistance is super quiet especially when compared to chain or belt drive bikes which is ideal for residential and small studio settings.

SportsArt C545U Upright Bike Specs and Features:

  • Dimensions: 46 L x 23 W x 56 H
  • Programs: Manual, Random, Interval (1-1, 1-2, 2-2), Plateau, Fat Burn, YMCA Test, HRC (WT Loss, Cardio, Custom HR)
  • Data Readouts: Heartrate, Cardio Zone, Weight Loss Zone, Active Zone, Calories, Level, Time, Distance, RPM, METs, Speed, Watts
  • Activ Zone: Yes
  • Cardio Advisor: Yes
  • Telemetry Heart Rate: Yes
  • Contact Heart Rate: Yes
  • Resistance Type: Electro-Magnetic
  • Resistance Control: Electronic
  • Gear Ratio: 8.5:1
  • Power Requirement: Self-Powered
  • Micro Inverter: No
  • Display: Multi-Segment LED
  • Low Profile Shroud: Yes
  • Seat Adjustments: Front to back/up and down seat positioning
  • Adjustable Seat Back: N/A
  • Pedals: Oversized pedals with quick strap adjustment
  • Resistance Levels: 40
  • 3-Speed Fan: No
  • Water Bottle Holder: Yes
  • Headphone Jack: Yes x 2 with built-in volume control
  • Integrated Audio Control: Yes
  • CSAFE: Yes / Port compatible with Netpulse
  • USB: Yes x 2/ For device charging
  • 30-Pin iPod Connector: Optional
  • Entertainment Mounting Bracket (EMB): Optional
  • Bluetooth: Yes
  • Languages: English, Spanish and French
  • Maximum User Weight: 450 lbs.
  • Suggested Use: 4 hours max per day non dues paying facility
  • Finish: Double Coat Paint
  • Unit Weight: 126 lbs.
  • Shipping Dimensions: 54.3 x 17.9 x 33.4
  • Ship Weight: 143 lbs.

Standard LED Cardio Display (C545U):

SportsArt LED cardio displays are designed to offer simplicity and convenience in one design. Unique AvtivZone and Cardio Advisor displays offer optimum heart rate control while workout quick keys and 3 goal based workouts allow intuitive access to your favorite ways to stay fit.

  • Easy to read Tri-Color LED display
  • Feedback window offers a quick look at Calories, Distance, Time, Pace, Mets and more
  • Cardio Advisor shows heart rate and optimal zones for weight loss and cardio
  • 10 Integrated Quick Start keys to find workouts faster.

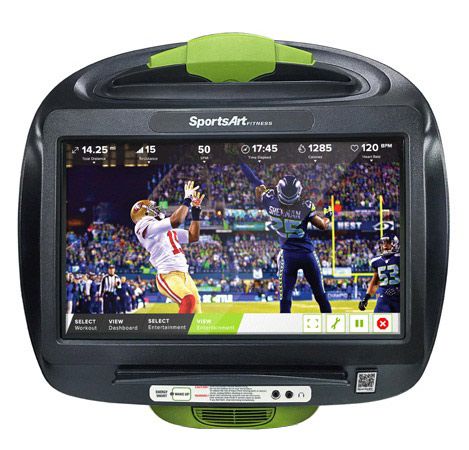

Optional SENZA Touchscreen LED Cardio Interface (C545U-16):

SportsArts SENZA touchscreen cardio interface is designed around the commitment to a Fitness First approach, allowing users to find the right workout faster and easier by delivering an intuitive streamlined interface with lifestyle targeted programs, dynamic entertainment options, and a virtual workout experience. Explore stunning virtual landscapes and experience some of the worlds most beautiful workout destinations right from your favorite SportsArt Equipment!

  • Elegant Workout Interface 16″ backlit LED capacitive touchscreen with anti-glare.
  • SENZA Journeys Where would you like to run today? From the Golden Gate Bridge to Arizonas Apache trail, youll have plenty of new places to explore with SENZA Journeys. The virtual run videos are equipped with dynamic speed optimization so the video speeds up and slows down to match your pace.
  • High Quality Display SENZA is built on the Android operating system with an industrial grade TFT dual-layer capacitive screen designed to withstand the daily abuse of a club environment.
  • Dynamic Entertainment Options SENZA offers multiple platforms of entertainment and user engagement. Its high-resolution screen delivers crystal clear television and internet with plenty of customization options to fit your facilitys needs. Built-in Wi-Fi and integrated Ethernet allow you to stream content and Bluetooth 4.0 can transfer data and music.
  • Customized Web Browsing Club owners and facility operators will enjoy customizing SENZA with various options like uploading company logos, adding an embedded home screen URL for internal marketing and member engagement, and easily-changing various default settings to make their facilitys experience unique.


Light Commercial Warranty:

  • Frame Warranty Lifetime
  • Parts Warranty – 5 Years
  • Wear Items Warranty – 2 Years
  • Labor Warranty – 3 Years
  • High Wearable Items Warranty – 90 Days, no labor


IronCompany ®

SportsArt Fitness is a fully integrated world-class manufacturer that produces to the highest standard of ISO with TUV Certification 9001-9002.
